Your current location: ProductsOther ValvesPressure Relief Valve

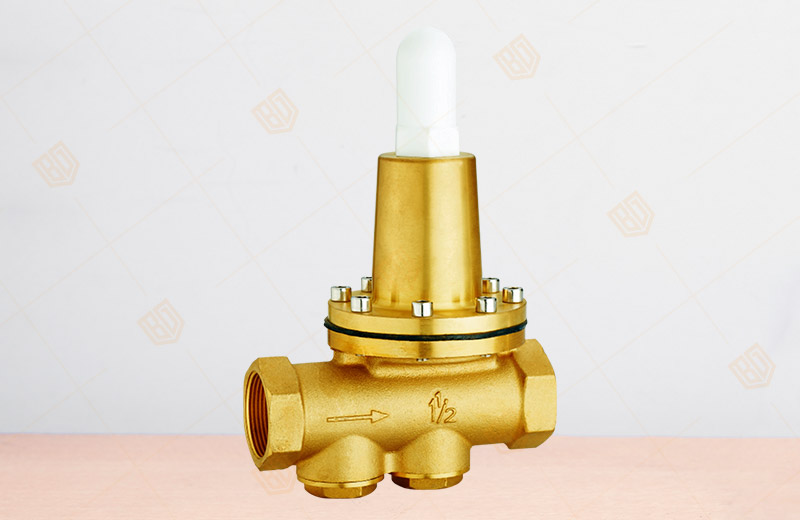

200P-16 Pressure Relief Valve

Product overview

Product model: 200P-16
Nominal diameter: DN15~50mm
Nominal pressure: 1.6MPa
Working medium: water and gas
Operating temperature: T ≤80℃
Maximum inlet pressure: 1.6MPa
Adjustable range of outlet pressure: 0.15Mpa - 0.50Mpa (set the pressure as 0.3Mpa when leaving the factory)
Pipe thread standard: in line with ISO228 standard

200P-16 Pressure Relief Valve product details

200P-16 Pressure Relief Valve specifications and dimensions

DN(mm) NPS(in) L H S
15 1/2 101 117 28
20 3/4 116 117 36
25 1 117 205 42
32 1 1/4 163 205 50
40 1 1/2 167 230 55
50 2 185 254 68


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the 200P-16 Pressure Relief Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
